Fan Silencers

Products

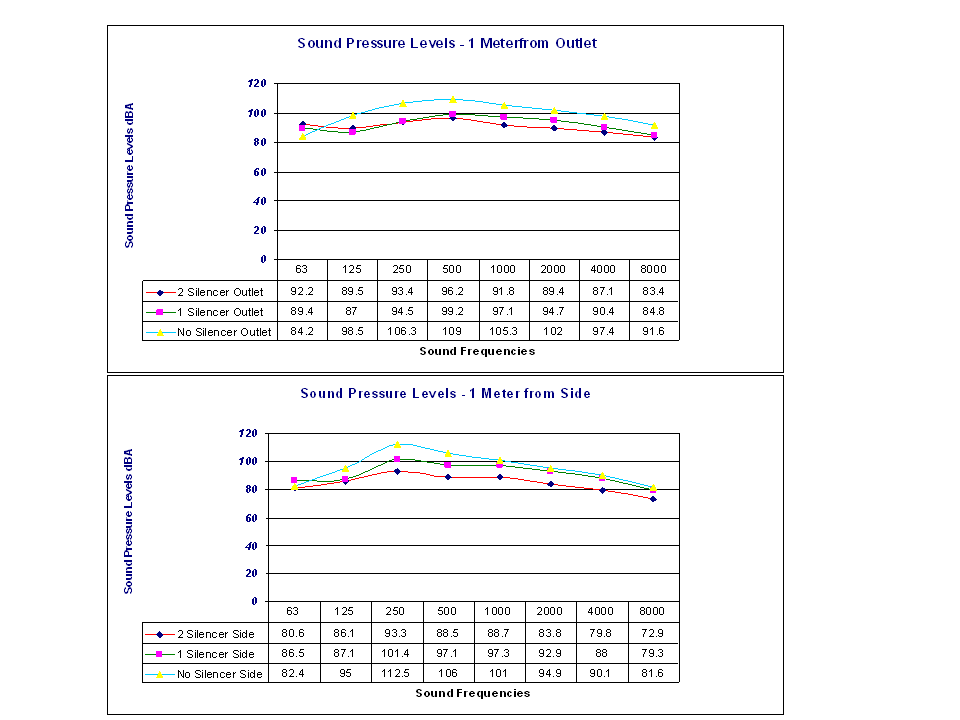

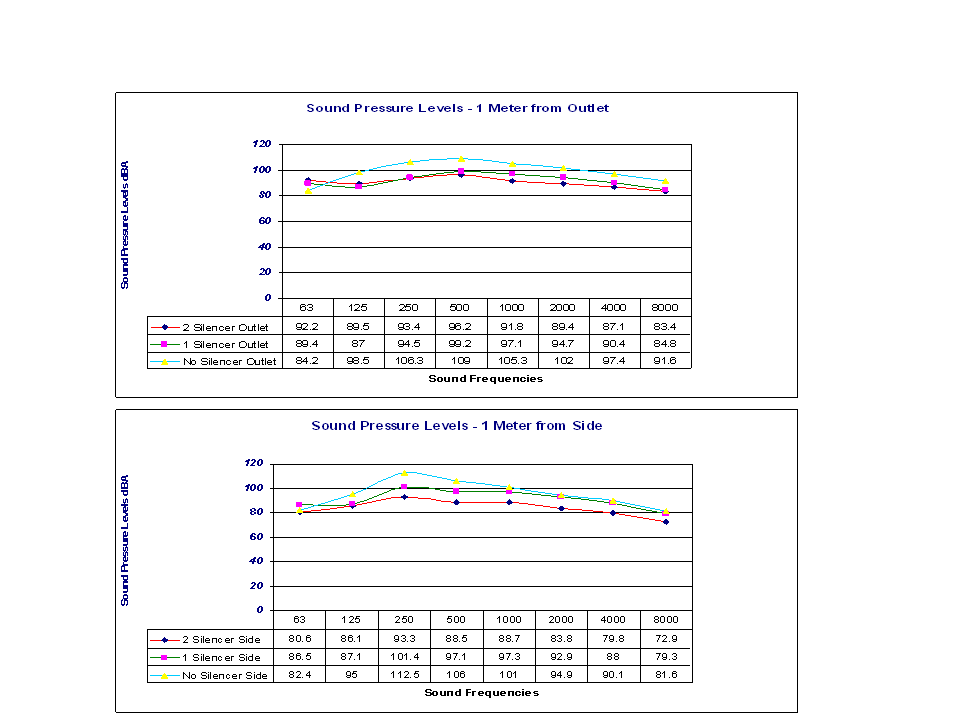

Please take a look at our Fan Silencers Sound Pressure Levels.

FAN SILENCER SPECIFICATIONS
406 MM DIAMETER FAN SILENCER
406 mm diameter casing
1300mm long
1,6mm casing thickness
300WA Mild Steel
Flanges – 50x6
Fill – 475x50mm Energylite faced with black sonic liner and 60kg/m³ Insulboard
Expanded metal – 6318F
Silencer Weight – 55 kg

FAN SILENCER SPECIFICATIONS
570 MM DIAMETER FAN SILENCER
570 mm diameter casing
1300mm long
1,6mm casing thickness
300WA Mild Steel
Flanges – 50x6
Fill – 475x50mm Energylite faced with black sonic liner and 60kg/m³ Insulboard
Expanded metal – 6318F
Silencer Weight – 75 kg

FAN SILENCER SPECIFICATIONS
760 MM DIAMETER FAN SILENCER
760 mm diameter casing
1300mm long
1,6mm casing thickness
300WA Mild Steel
Flanges – 50x6
Fill – 475x50mm Energylite faced with black sonic liner and 60kg/m³ Insulboard
Expanded metal – 6318F
Silencer Weight – 95.5 kg
